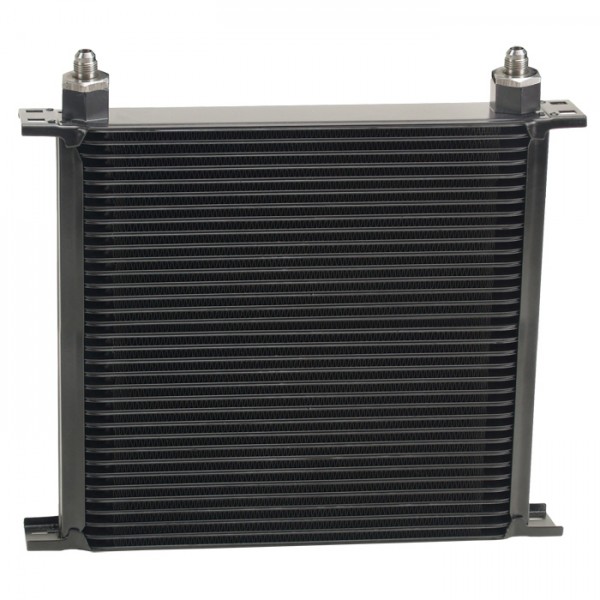

Stack Plate Fluid Cooler 34 Row Design Core-6AN Male Outlet Derale

Our most efficient heat exchanger, the all aluminum 34 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -6AN male adapter fittings.

Features
Designed for engine and transmission cooling
Most efficient heat exchangers available
Furnace brazed aluminum construction with 4 integrated mounting brackets
34 row cooler design
Male -6AN aluminum O-ring inlet fittings
59,000 BTU's Per Hour
Specifications
Cooler style: Stack Plate
Construction: Aluminum
Inlet size: -10AN o-ring female
Width: 13"
Height: 11-13/16"
Depth: 2"
Inlet dim: 10"
Mounting: 12-1/4" x 10-1/16"
59,000 BTU's Per Hour
