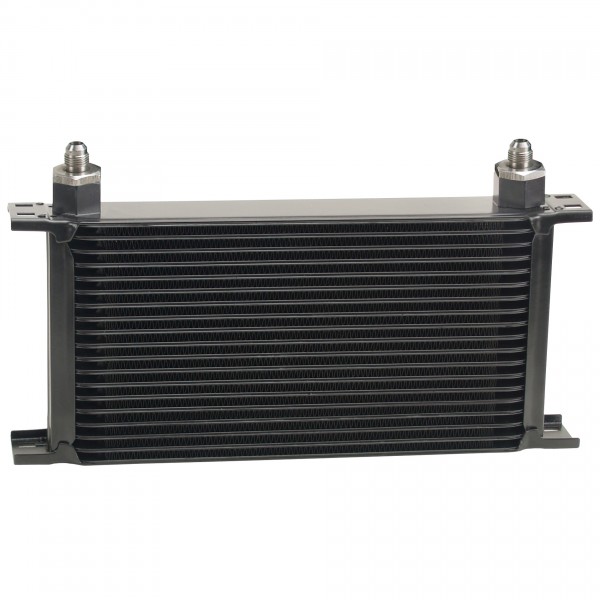

Stack Plate Fluid Cooler 19 Row Design Core-6AN Male Outlet Derale
Part Number:
51906
Our most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes black aluminum anodized finished -6AN male adapter fittings.
Features
Designed for engine and transmission cooling
Most efficient heat exchangers available
Furnace brazed aluminum construction with 4 integrated mounting brackets
19 row cooler design
Male -6AN aluminum O-ring inlet fittings
Specifications
Cooler style: Stack Plate
Construction: Aluminum
Inlet size: -10AN o-ring female x -6AN male

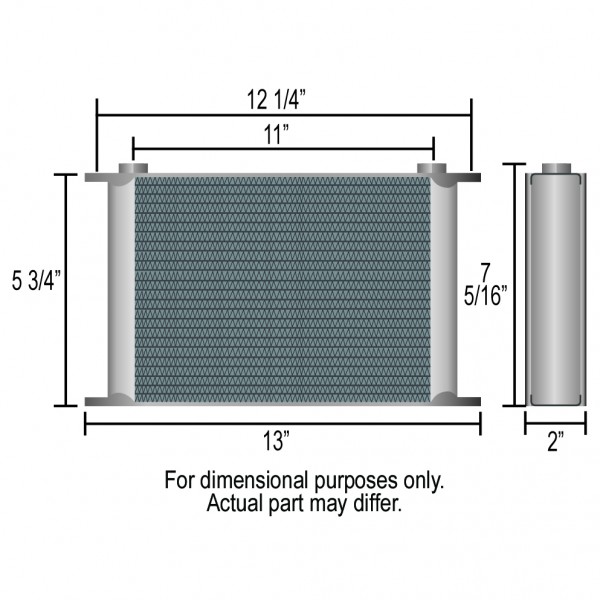

Width: 13"
Height: 7-5/16"
Depth: 2"
Inlet dim: 10"
Mounting: 12-1/4" x5-3/4"
37,000 BTU's Per Hour
Derale coolers are rated at 250psi working pressure and 300psi burst strength
12oz additional fluid capacity
Features
Designed for engine and transmission cooling
Most efficient heat exchangers available
Furnace brazed aluminum construction with 4 integrated mounting brackets
19 row cooler design
Male -6AN aluminum O-ring inlet fittings
Specifications
Cooler style: Stack Plate
Construction: Aluminum
Inlet size: -10AN o-ring female x -6AN male
Width: 13"
Height: 7-5/16"
Depth: 2"
Inlet dim: 10"
Mounting: 12-1/4" x5-3/4"
37,000 BTU's Per Hour
Derale coolers are rated at 250psi working pressure and 300psi burst strength
12oz additional fluid capacity
| Brand: Derale Performance |
