Derale 8000 Series 18 Row Plate & Fin Fluid Cooler Inverted Flare Inlets

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This is a cooler only.

Specifications:
- Cooler style: Plate & Fin
- Construction: Aluminum
- Inlet size: 1/2"-20 Inverted Flare
- BTU: 20000

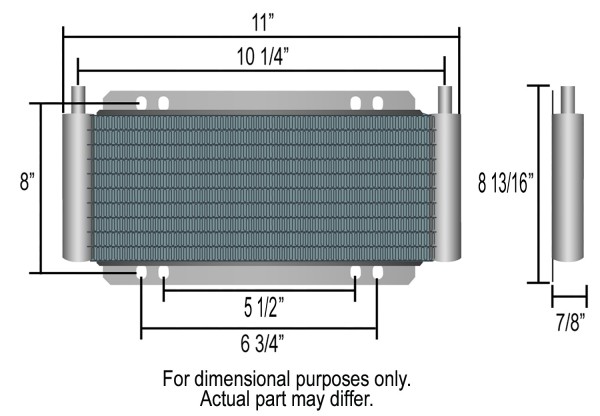

- Width: 11"
- Height: 8-13/16"
- Depth: 7/8"
- Inlet dim: 10-1/4"
- Mounting: 6-3/4" x 8"

Features:
- Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength
- 18 row cooler design
- 3/4" embossed turbulators maximize cooling & minimize pressure drop
- 20000 BTU
- Fluid Capacity: 5.5 oz
- Cooler Only
