Derale 16" Straight Blade Reversible 1680Cfm Electric Fan with Thermostat
Part Number:
16316
Derale 16316 16" Dyno Cool Straight Blade Reversible 1680Cfm Electric Fan with Adjustable Thermostat.
A great auxiliary fan or primary cooling fan for small to intermediate cars and trucks, this 16" straight blade electric fan produces 1550 CFM at 0 static pressure, drawing only 15.5 amps. Includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32F-240F with turn off set at 10F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
1550 CFM.
Reversible design - can be used as a pusher or puller.

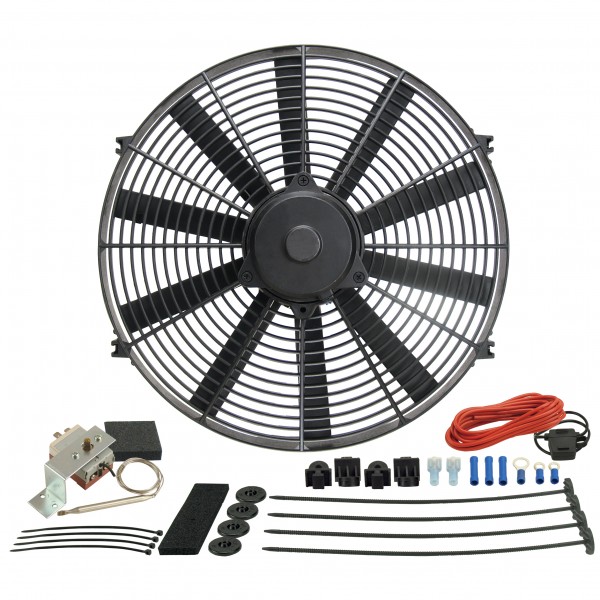

Complete fan control kit includes 180 thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.

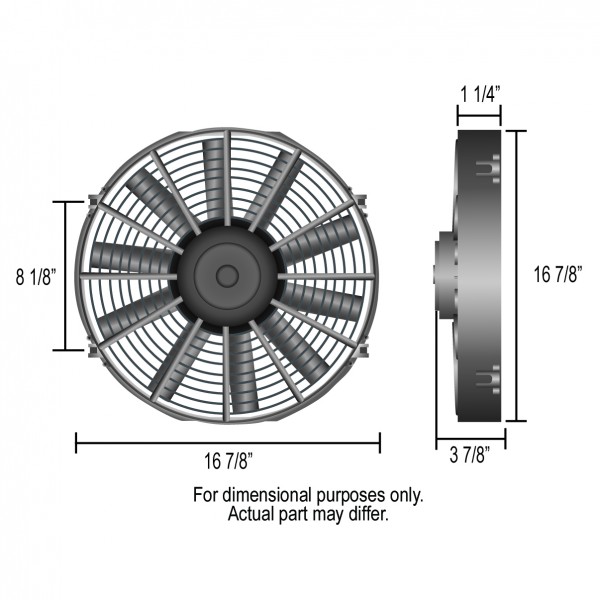

Specifications:
Fan size: 16".
CFM: 1550.
Amp draw: 15.5.
Width: 16-7/8".
Height: 16-7/8".
Depth: 1-1/4".
Overall depth: 3-7/8".
Mounting: 8-1/8".
Airflow: Puller (reversible).
A great auxiliary fan or primary cooling fan for small to intermediate cars and trucks, this 16" straight blade electric fan produces 1550 CFM at 0 static pressure, drawing only 15.5 amps. Includes fan, mounting kit and mechanical fan controller with adjustable turn on temp between 32F-240F with turn off set at 10F below turn on. Uses a capillary tube radiator hose probe design.
Features:
Ultra low profile design.
Straight fan blades.
1550 CFM.
Reversible design - can be used as a pusher or puller.
Complete fan control kit includes 180 thermostat with both thread-in water jacket probe and push-in radiator probe, relay wire harness, all mounting hardware and wire connections.
Specifications:
Fan size: 16".
CFM: 1550.
Amp draw: 15.5.
Width: 16-7/8".
Height: 16-7/8".
Depth: 1-1/4".
Overall depth: 3-7/8".
Mounting: 8-1/8".
Airflow: Puller (reversible).
| Brand: Derale Performance |
