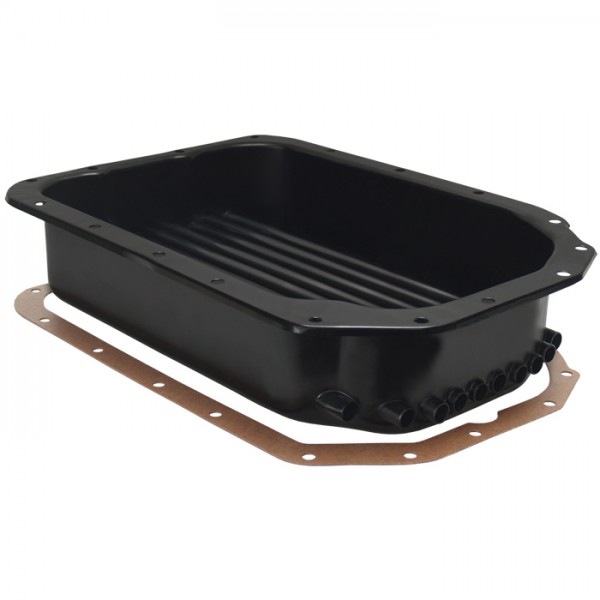

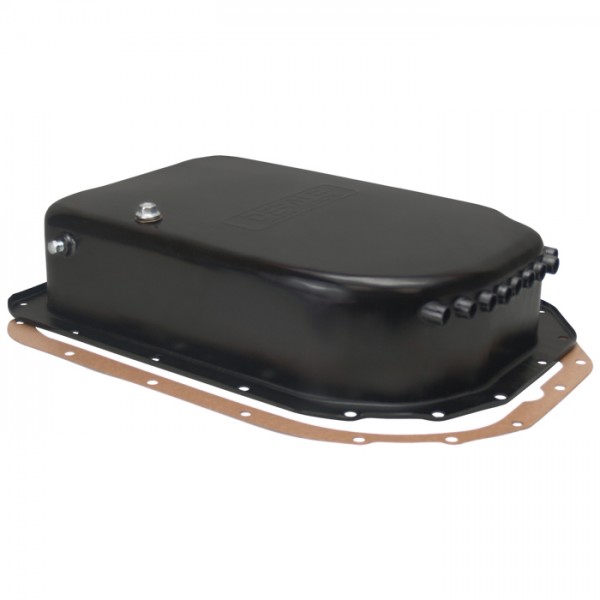

Transmission Cooling Pan GM 700R4 4L80E 4-1/4" Deep + Tubes Derale

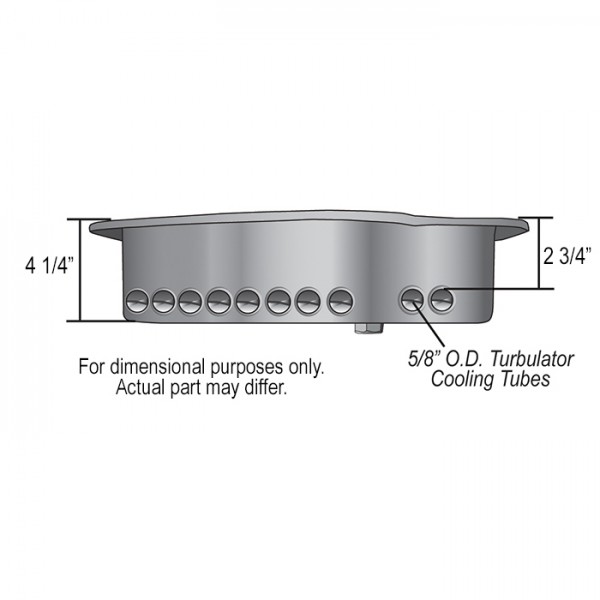

Derale's Transmission Cooling Pan #14207 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for GM's heavy duty 4L80E transmissions, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug. Specifications: Pan Dimensions: 19" Length x 13 3/8" Width x 4 1/4" Height. Drain plug adds 1/4" to height. Tube depth: 2-3/4". Temperature bung size: 1/8" NPT. Drain plug size 1/2"-20. Replacement drain plug Derale 14000. Features:

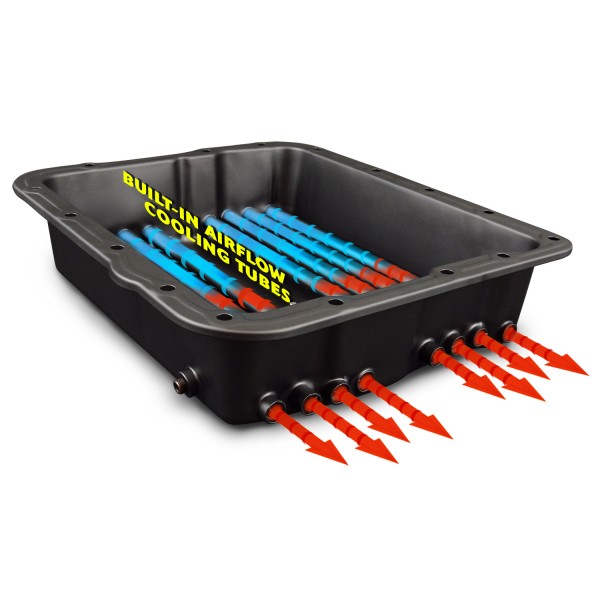

Heavy gauge stamped steel construction. Two stage heat dissipating black finish. 1/8" NPT temperature sender port. Reduces fluid temperatures up to 50F. Increases fluid capacity by 4 qts. 16 oz. Patented turbulator cooling tubes add heat transfer capability. Magnetic drain plug with increased magnetic strength and rubber/steel washer. Uses OEM filter with no filter extension required.
