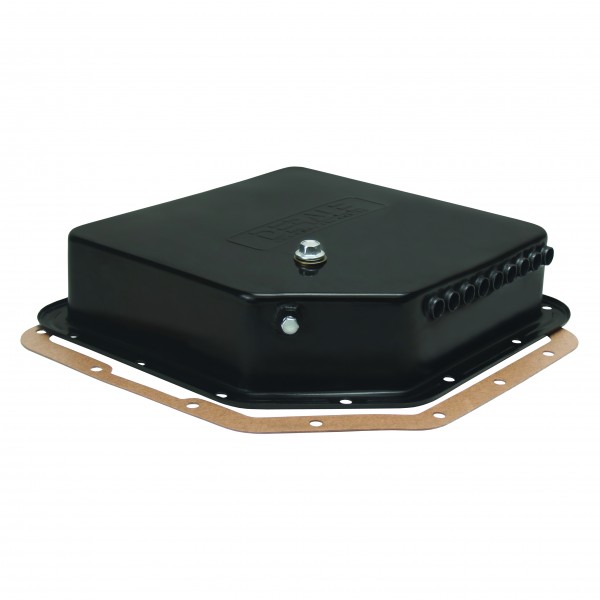

Transmission Cooling Pan GM Turbo Hydro TH350 3-3/8" Deep + Tubes Derale

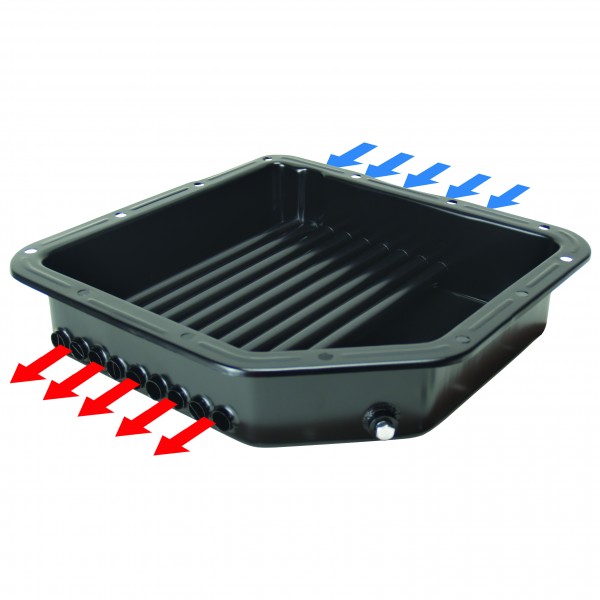

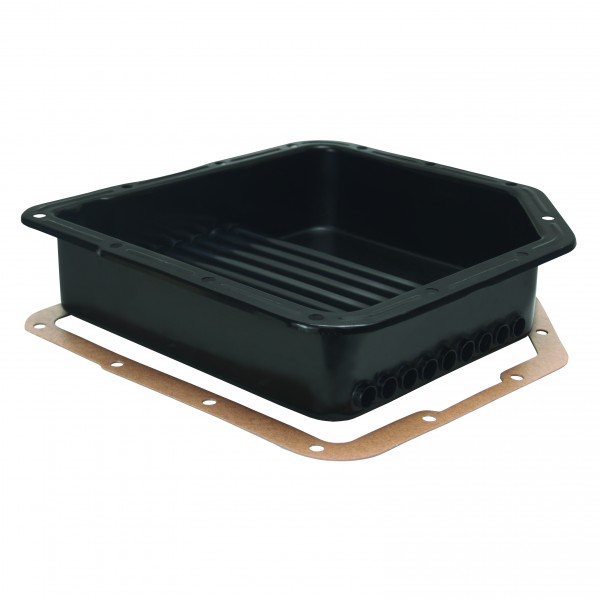

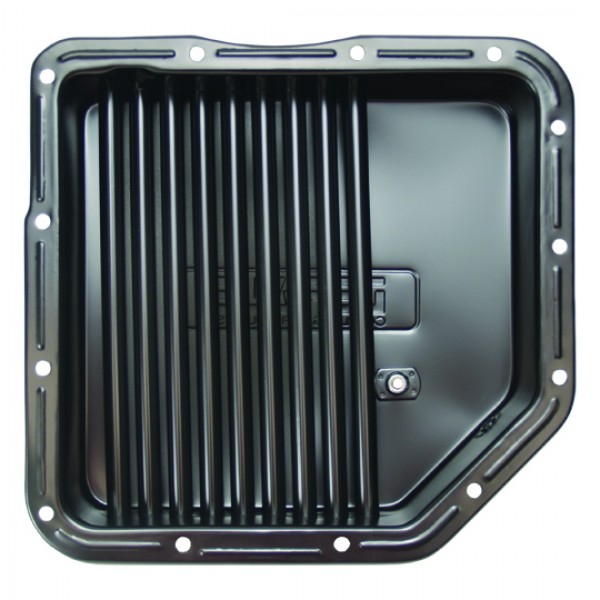

Derale's TH350 Transmission Cooling Pan #14200 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. With brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.


Pan Dimensions: 13 1/2" Length x 13" Width x 3-3/8" Height. Drain plug adds 1/4" to height. Tube depth: 2-3/8". Temp bung size: 1/8" NPT. Drain plug size 1/2"-20. Replacement drain plug Derale Part Number 14000.

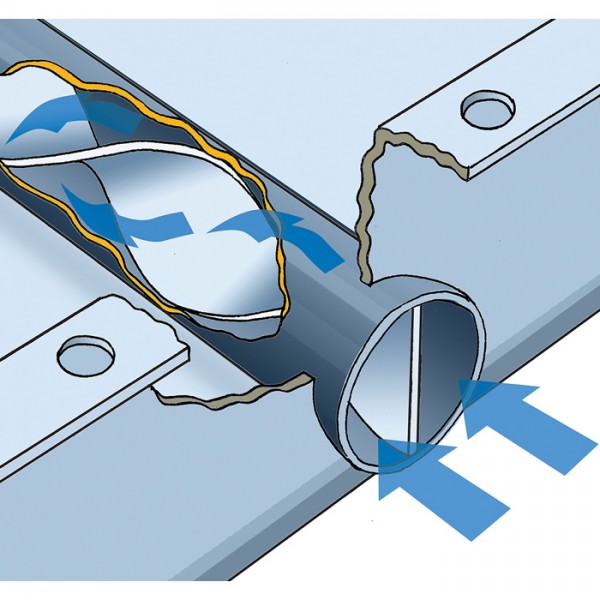

Heavy gauge stamped steel construction. Two stage heat dissipating black finish. 1/8" NPT temperature sender port. Reduces fluid temperatures up to 50F. Increases fluid capacity by Usa 2 qts. Patented turbulator cooling tubes add heat transfer capability. Magnetic drain plug with increased magnetic strength and rubber/steel washer. Uses OEM filter with no filter extension required.
