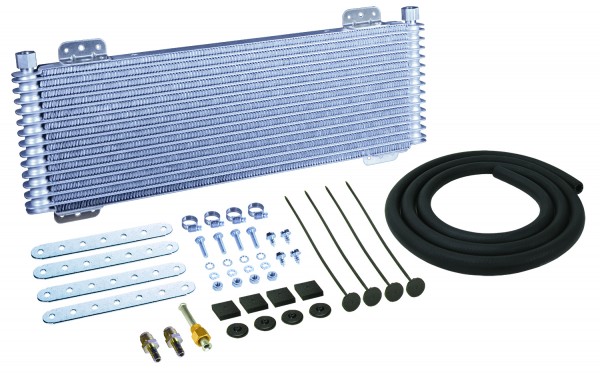

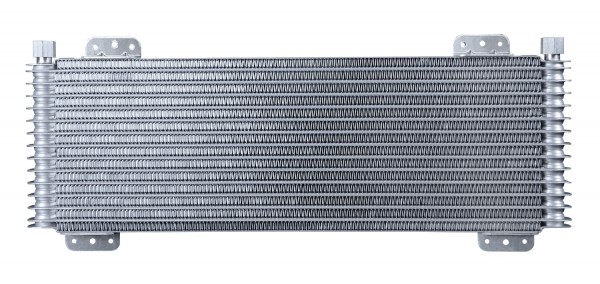

13 Row Series 9500 Plate & Fin Trans Cooler Kit (5/8" Inverted Flare)

This unit is perfect for light to medium duty use and occasional towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. Built with 5/8" Inverted Flare Inlets and includes 3/8" hose barb adapters. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Features:
- Prevents heat related transmission failures
- Extends life of transmission
- Improves transmission performance
- Sturdy furnace-brazed aluminum construction
- 13 row cooler design
- Turbulators maximize cooling & minimize pressure drop
- 3/8" hose barb adapters included
- GVW: 34000
- BTU: 33000
- Fluid Capacity: 20 oz.
- All Derale coolers are rated at 250psi working pressure and 300psi burst strength

Specifications:
- Cooler style: Plate & Fin
- Construction: Aluminum
- GVW: 34000
- BTU: 33000
- Inlet size: 5/8" inverted flare female inlets
- Fitting size: 3/8" barb

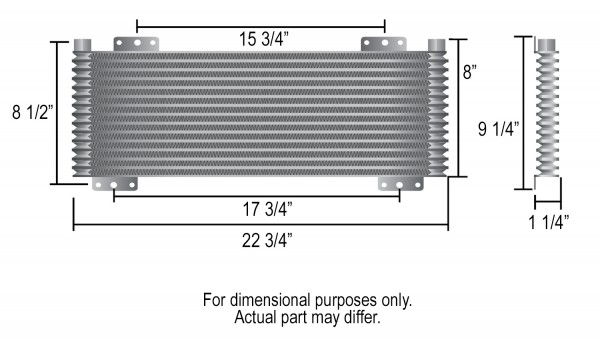

- Width: 22-3/4"
- Height: 8"
- Overall Height (with brackets and inlets): 9-1/4"
- Depth: 1-1/4"
- Inlet to Inlet dim: 21-3/8"
- Mounting: 15-3/4", 17-3/4", 8-1/2"
- Hose size: 3/8"
- Hose length: 4'
