Derale Power Steering Cooler Kit 9 Row 11"x5-3/4"x7/8" Plate + Fin

Derale 13215 A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop.

Features
Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
Sturdy furnace-brazed aluminum construction
All Derale coolers are rated at 250psi working pressure and 300psi burst strength
9 row cooler design
3/4" embossed turbulators maximize cooling & minimize pressure drop
11/32" hose barb inlets
15500 GVW rated

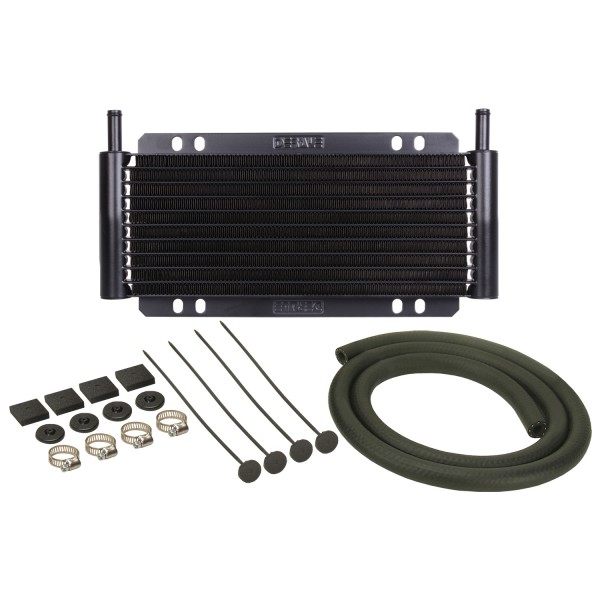

Complete hardware kit included
Fluid Capacity: 2.5 oz.
Specifications
Cooler style: Plate & Fin
Construction: Aluminum
Inlet size: 11/32" barb
GVW: 15500

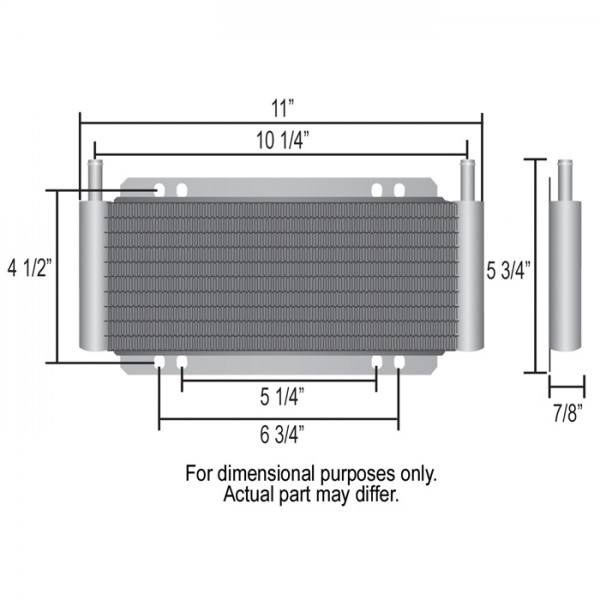

Width: 11"
Height: 5-3/4"
Depth: 7/8"
Inlet dim: 10-1/4"
Mounting: 6-3/4" x 4-1/2"
Hose size: 11/32"
Hose length: 4'
