Derale Transmission Filter Kit Single Mount 3/8" NPT Ports Up Remote
Part Number:
13090
Our universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. Another benefit is the increased fluid capacity which effectively cools fluid temperatures moderately and help extend the life of the transmission.

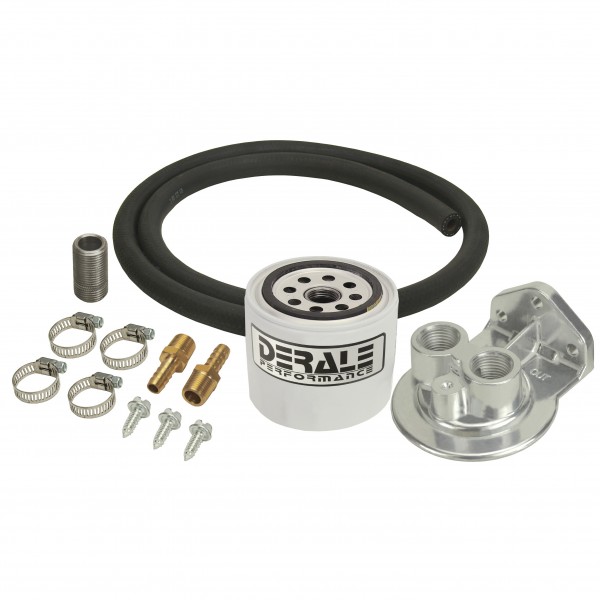

Specifications: Nominal Micron Rating 21, By-Pass Valve Setting-PSI: 8-11, Anti-Drain Back Valve: Yes, Burst Pressure-PSI: 340, Max Flow Rate: 7-9 US Gallons per minute, Filter Dimensions 3-1/2" OD x 3-7/8", Filter thread size 3/4"-16, Filter landing 2-1/2" to 3-1/2", Inlet size 3/8" NPT, Barb size 3/8", Hose size 3/8", Hose length 4 ft. Features: Extends life of transmission. Filters out contaminants more efficiently than OE screen type filters. Universal - fits all automatic transmissions. Increases fluid capacity. Standard kit includes all remote filter mount, 4' hose, filter and mounting hardware. Derale 13090
Specifications: Nominal Micron Rating 21, By-Pass Valve Setting-PSI: 8-11, Anti-Drain Back Valve: Yes, Burst Pressure-PSI: 340, Max Flow Rate: 7-9 US Gallons per minute, Filter Dimensions 3-1/2" OD x 3-7/8", Filter thread size 3/4"-16, Filter landing 2-1/2" to 3-1/2", Inlet size 3/8" NPT, Barb size 3/8", Hose size 3/8", Hose length 4 ft. Features: Extends life of transmission. Filters out contaminants more efficiently than OE screen type filters. Universal - fits all automatic transmissions. Increases fluid capacity. Standard kit includes all remote filter mount, 4' hose, filter and mounting hardware. Derale 13090
| Brand: Derale Performance |
